ORMA MEMBRANE PRESS WITH AUTOMATIC PIN SYSTEM TYPE AFT/PS 33/14

Prices for store pick up
(not including delivery or shipping)

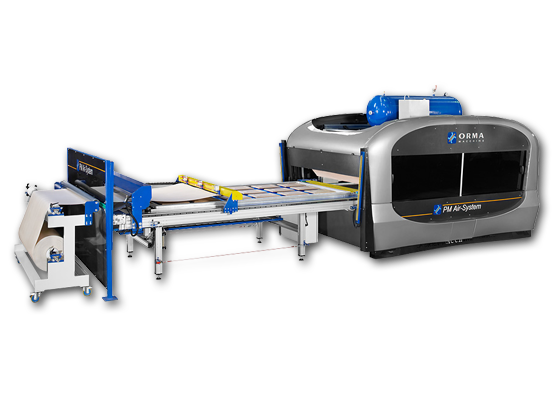

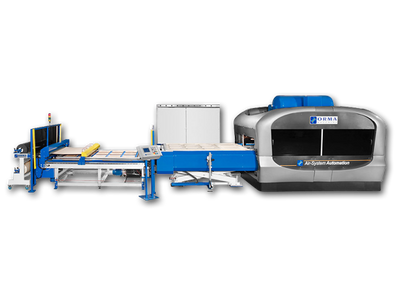

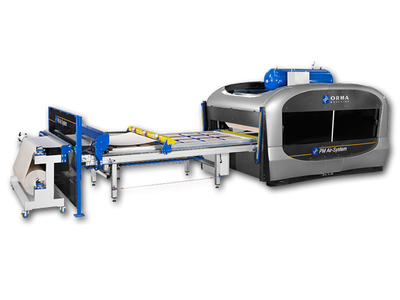

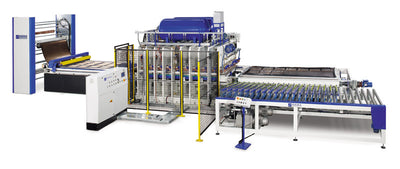

Membrane press for 3D covering with fully automatic pin system

Automatic loading/unloading with no. 3 trays and continuous cycle

- DOUBLE PVC UNROLLER EQUIPMENT

- LOADING UNIT WITH SCISSOR LIFT TO LIFT UP THE TRAY, PVC PULLING

  AND POSITIONING DEVICE WITH PNEUMATIC CUTTING UNIT, SCANNER UNIT

- NO. 3 LOADING TRAYS WITH MOVABLE PINS

- MEMBRANE PRESS AFT/PS 33/14

- UNLOADING TABLE WITH SCISSOR LIFT TO LOWER THE TRAY



Finance Available Shipping & Delivery

Our finance partners can arrange funding to acquire equipment at competitive rates. We can offer loan, lease and hire purchase agreements to suit our customers needs.

*****We have a handy leasing calculator available on request help identify the monthly costings and tax savings*******
The Tax Benefits of Leasing explained

Leasing converts a large capital expenditure into small monthly payments. Hence the company has the profit-making equipment immediately and keeps their cash reserve available.

Rather than investing the precious cash reserves in depreciating assets, the company can use them to help increase profits.

Lease Rental is 100% Tax deductible

The main reason that the majority of companies lease rather than purchase equipment is that they use leasing as a method of reducing their tax bills. This is because lease rental is 100% tax deductible, and all payments made for the equipment are written off against the company’s tax bill. For any profit making business, this means a substantial saving in the real cost of acquiring equipment by lease rental. This could mean a saving of between 20-40% of the lease payments, depending on the rate of tax you pay*.

Payments on qualifying leases are written off as direct operating expenses, rather than a debt or outstanding liability, thus reducing short term taxable income.
Any capital allowances are passed on to you, and lease payments can be offset against taxable profits. VAT can also be reclaimed on monthly payments. This status as a “lease” as opposed to a “liability” on a company’s balance sheet is something the banks like to see, which is why an operating lease can be attractive. For this reason, leasing is often referred to as ‘off balance sheet’ financing – a tremendous advantage to both large and small businesses

Ownership at the end of the lease

Lease rental is just that, a rental or hire agreement. Title of the goods remains with the Lessor (either Kennet or assigned to a bank), which means the equipment does not show on the companies balance sheet, therefore not needing to be depreciated over a fixed period. If Kennet broker the funding, they are the “third party” involved within the lease agreements. In effect, Kennet buys the equipment from the supplier and then sell it on to the customer. This means that the customer can take full advantage of all the benefits of leasing but still owns it at the end.

The disadvantage of buying equipment outright

The disadvantage to buying equipment out-right, is that the capital invested becomes a depreciating asset. This is an asset that’s value decreases over time.
The total amount that assets have depreciated by during a reporting period is shown on the cashflow statement, and also makes up part of the expenses shown on the income statement. The amount that assets have depreciated to by the end date is shown on the balance sheet.
***************************************************************************************************************************
How the tax advantages of leasing works – in numbers
You lease a machine that costs £5,000 + VAT, over a 3 year term.
The monthly payments would be £162.50 + VAT over 36 months
Total paid over the term of the lease £5850
20% tax can be reclaimed on the total lease payments over the 3 years, so a total of £1170
Therefore the net cost of the lease is £5850 – £1170 = £4680*
***************************************************************************************************************************
*Your accountant will be able to provide more information. This information is provided for guidance only.
For more information, call Mark Suckley and his team at Kennet Equipment Leasing on 01675 469215 or email marksteam@kennet-leasing.co.uk.

All prices are quoted EXWORKS Bacup. You can arrange your own collection or if preferred we can arrange delivery.

We have Transport partners with a variety of vehicles including HIAB. Please enquire for a quotation.

Downloads

Videos

Features

Accessories

Specifications

Press structure in Fe 430 flame cut pieces tied together.  Locating surfaces are tool machined.   Lower movable platen movement by means of auxiliary cylinders; platen parallelism ensured by racks and cone gears coupling on the four sides.   Upper platen heating carried out by means of single electric resistances (total consumption 32 KW), directly fitted in the platen. 25 mm thick perimeter flange made of galvanized steel with special O-ring silicon seal in order to ensure the perfect pressure tightness.    Silicone membrane fitted to the upper platen and fixed all around the press upper structure by means of fast clamping units.  20 mm thick intermediate flange made of galvanized steel with special O-ring silicon seal in order to ensure the perfect pressure tightness.    Control bar with ball movement sliding on hardened steel guides. Brushless motor 2.2 Nm, 0.6 kW. The bar has a row of electromagnetic actuators which, when above every pins row of the press movable platen, move down the pins which are under the pins of the tray not covered by the working pieces.   Hydraulic unit with piston pre-filling system for platen quick opening and closing (40 mm/sec.).  Oil tank made of quality steel complete with oil pouring tap and related filter, filter for air exhaust, visual indicator of minimum and maximum oil level. The intake of the pre-filling valves and the pump with related closing cocks are connected to the tank. This allows the maintenance of cylinders, pump and valves without emptying the tank. Radial piston pump 9.8 l/min with intake filter connected to the motor 7.5 Hp; unit fitted to the press structure; automatic prefilling valves.  Thrusting pistons are steel manufactured according to an exclusive Ormamacchine design. Thickness chromed shafts to increase their hardness so to grant their durability, are sliding on bushings made out of anti-friction material and constantly lubricated by the same oil used for the hydraulic plant.  Press structure in Fe 430 flame cut pieces tied together.  Locating surfaces are tool machined.   Lower movable platen movement by means of auxiliary cylinders; platen parallelism ensured by racks and cone gears coupling on the four sides.   Upper platen heating carried out by means of single electric resistances (total consumption 32 KW), directly fitted in the platen. 25 mm thick perimeter flange made of galvanized steel with special O-ring silicon seal in order to ensure the perfect pressure tightness.    Silicone membrane fitted to the upper platen and fixed all around the press upper structure by means of fast clamping units.  20 mm thick intermediate flange made of galvanized steel with special O-ring silicon seal in order to ensure the perfect pressure tightness.    Control bar with ball movement sliding on hardened steel guides. Brushless motor 2.2 Nm, 0.6 kW. The bar has a row of electromagnetic actuators which, when above every pins row of the press movable platen, move down the pins which are under the pins of the tray not covered by the working pieces.   Hydraulic unit with piston pre-filling system for platen quick opening and closing (40 mm/sec.).  Oil tank made of quality steel complete with oil pouring tap and related filter, filter for air exhaust, visual indicator of minimum and maximum oil level. The intake of the pre-filling valves and the pump with related closing cocks are connected to the tank. This allows the maintenance of cylinders, pump and valves without emptying the tank. Radial piston pump 9.8 l/min with intake filter connected to the motor 7.5 Hp; unit fitted to the press structure; automatic prefilling valves.  Thrusting pistons are steel manufactured according to an exclusive Ormamacchine design. Thickness chromed shafts to increase their hardness so to grant their durability, are sliding on bushings made out of anti-friction material and constantly lubricated by the same oil used for the hydraulic plant.

  1. DOUBLE PVC UNROLLER EQUIPMENT
 No. 2 holding PVC roller shafts with ball-bearings and braking system.
Centering side wedges made of nylon, adaptable to the different PVC rollers inner diameters.
Structure made of welded profiles.
Wheels for easy movement around the working place.
  1. LOADING UNIT WITH SCISSOR LIFT TO LIFT UP THE TRAY, PVC PULLING
       AND POSITIONING DEVICE WITH PNEUMATIC CUTTING UNIT, SCANNER UNIT
Loading unit covered by painted steel sheets composed of :

SCISSOR LIFT to lift up the tray
  Max. capacity 2000 kg.
  No. 2 hydraulic cylinders ø 70 mm, stroke 780 mm, hydraulic pump 11.2 l/min, motor 3 kW.
   Parachute valve in order to stop immediately the fall of the platform in case of oil pipes breaking.
  Top surface and its frame made of steel.
  Side guides for movement of trays: motorized chain guide and idle rollers guide.
  Chain moved by motor 1.1 kW; electronic adjustable speed through inverter.
  Structure made of normalized steel profiles with sliding shoes made of antifriction material for
  the vertical movement control of the platform.

Aluminium profiled BAR with :
- Automatic PVC PULLING and POSITIONING device over the tray, equipped with
   pneumatic CUTTING UNIT.
  This device unrolls automatically the PVC foil over the tray by means of pneumatic pincers
  driven by a rack and pinion system, then the foil is cut and laid down onto the tray.
- Digital optics SCANNER unit with 14 mm pitch to read dimension and position of the working
  pieces in order to activate the pins once the tray is in the press: the pins covered by the
  working pieces will stay up, the pins uncovered will be lowered.
Movement of the bar by means of balls sliding on hardened steel guides.
Brushless motor 2.2 Nm, 0.6 kW.



  1. NO. 3 LOADING TRAYS WITH MOVABLE PINS

Loading tray made of 15 mm thick 6080 durallumin alloy sheet, coupled with a phenolic sheet of the same thickness.
The tray is drilled in the length and in the width in order to form a grid; in the grid holes there are the pins which have a 28 mm square head and cover the whole surface.
The pins can be moved up and down raising the working pieces above the tray of 14 mm.
25 mm thick perimeter aluminium flange with special O-ring silicon seal in order to ensure the perfect pressure tightness.

  • Tray thickness                                       48                    mm
  • Tray overall dimensions                        3540 x 1680    mm
  • Outer flange dimensions                       3400 x 1540    mm
  • Inner flange dimensions                        3200 x 1343    mm
    1. DOUBLE PVC UNROLLER EQUIPMENT
  •
    No. 2 holding PVC roller shafts with ball-bearings and braking system.
    Centering side wedges made of nylon, adaptable to the different PVC rollers inner diameters.
    Structure made of welded profiles.
    Wheels for easy movement around the working place.





    1. LOADING UNIT WITH SCISSOR LIFT TO LIFT UP THE TRAY, PVC PULLING
  •        AND POSITIONING DEVICE WITH PNEUMATIC CUTTING UNIT, SCANNER UNIT

    Loading unit covered by painted steel sheets composed of :

    SCISSOR LIFT to lift up the tray
      Max. capacity 2000 kg.
      No. 2 hydraulic cylinders ø 70 mm, stroke 780 mm, hydraulic pump 11.2 l/min, motor 3 kW.
       Parachute valve in order to stop immediately the fall of the platform in case of oil pipes breaking.
      Top surface and its frame made of steel.
      Side guides for movement of trays: motorized chain guide and idle rollers guide.
      Chain moved by motor 1.1 kW; electronic adjustable speed through inverter.
      Structure made of normalized steel profiles with sliding shoes made of antifriction material for
      the vertical movement control of the platform.

    Aluminium profiled BAR with :
    - Automatic PVC PULLING and POSITIONING device over the tray, equipped with
       pneumatic CUTTING UNIT.
      This device unrolls automatically the PVC foil over the tray by means of pneumatic pincers
      driven by a rack and pinion system, then the foil is cut and laid down onto the tray.
    - Digital optics SCANNER unit with 14 mm pitch to read dimension and position of the working
      pieces in order to activate the pins once the tray is in the press: the pins covered by the
      working pieces will stay up, the pins uncovered will be lowered.
    Movement of the bar by means of balls sliding on hardened steel guides.
    Brushless motor 2.2 Nm, 0.6 kW.



    1. NO. 3 LOADING TRAYS WITH MOVABLE PINS
  •
    Loading tray made of 15 mm thick 6080 durallumin alloy sheet, coupled with a phenolic sheet of the same thickness.
    The tray is drilled in the length and in the width in order to form a grid; in the grid holes there are the pins which have a 28 mm square head and cover the whole surface.
    The pins can be moved up and down raising the working pieces above the tray of 14 mm.
    25 mm thick perimeter aluminium flange with special O-ring silicon seal in order to ensure the perfect pressure tightness.

    • Tray thickness                                       48                    mm
    • Tray overall dimensions                        3540 x 1680    mm
    • Outer flange dimensions                       3400 x 1540    mm
    • Inner flange dimensions                        3200 x 1343    mm
      1. DOUBLE PVC UNROLLER EQUIPMENT
    •
      No. 2 holding PVC roller shafts with ball-bearings and braking system.
      Centering side wedges made of nylon, adaptable to the different PVC rollers inner diameters.
      Structure made of welded profiles.
      Wheels for easy movement around the working place.



      1. LOADING UNIT WITH SCISSOR LIFT TO LIFT UP THE TRAY, PVC PULLING
    •        AND POSITIONING DEVICE WITH PNEUMATIC CUTTING UNIT, SCANNER UNIT

      Loading unit covered by painted steel sheets composed of :

      SCISSOR LIFT to lift up the tray
        Max. capacity 2000 kg.
        No. 2 hydraulic cylinders ø 70 mm, stroke 780 mm, hydraulic pump 11.2 l/min, motor 3 kW.
         Parachute valve in order to stop immediately the fall of the platform in case of oil pipes breaking.
        Top surface and its frame made of steel.
        Side guides for movement of trays: motorized chain guide and idle rollers guide.
        Chain moved by motor 1.1 kW; electronic adjustable speed through inverter.
        Structure made of normalized steel profiles with sliding shoes made of antifriction material for
        the vertical movement control of the platform.

      Aluminium profiled BAR with :
      - Automatic PVC PULLING and POSITIONING device over the tray, equipped with
         pneumatic CUTTING UNIT.
        This device unrolls automatically the PVC foil over the tray by means of pneumatic pincers
        driven by a rack and pinion system, then the foil is cut and laid down onto the tray.
      - Digital optics SCANNER unit with 14 mm pitch to read dimension and position of the working
        pieces in order to activate the pins once the tray is in the press: the pins covered by the
        working pieces will stay up, the pins uncovered will be lowered.
      Movement of the bar by means of balls sliding on hardened steel guides.
      Brushless motor 2.2 Nm, 0.6 kW.



      1. NO. 3 LOADING TRAYS WITH MOVABLE PINS
    •
      Loading tray made of 15 mm thick 6080 durallumin alloy sheet, coupled with a phenolic sheet of the same thickness.
      The tray is drilled in the length and in the width in order to form a grid; in the grid holes there are the pins which have a 28 mm square head and cover the whole surface.
      The pins can be moved up and down raising the working pieces above the tray of 14 mm.
      25 mm thick perimeter aluminium flange with special O-ring silicon seal in order to ensure the perfect pressure tightness.

      • Tray thickness                                       48                    mm
      • Tray overall dimensions                        3540 x 1680    mm
      • Outer flange dimensions                       3400 x 1540    mm
      • Inner flange dimensions                        3200 x 1343    mm
        1. UNLOADING TABLE WITH SCISSOR LIFT TO LOWER THE TRAY
      •
        Unloading unit covered by painted steel sheets with a SCISSOR LIFT to lower the tray
          Max. capacity 2000 kg.
          No. 2 hydraulic cylinders ø 70 mm, stroke 780 mm, hydraulic pump 11.2 l/min, motor 3 kW.
           Parachute valve in order to stop immediately the fall of the platform in case of oil pipes breaking.
          Top surface and its frame made of steel.
          Side guides for movement of trays: motorized chain guide and idle rollers guide.
          Chain moved by motor 1.1 kW; electronic adjustable speed through inverter.
          Structure made of normalized steel profiles with sliding shoes made of antifriction material for
          the vertical movement control of the platform.
        1. UNLOADING TABLE WITH SCISSOR LIFT TO LOWER THE TRAY
      •
        Unloading unit covered by painted steel sheets with a SCISSOR LIFT to lower the tray
          Max. capacity 2000 kg.
          No. 2 hydraulic cylinders ø 70 mm, stroke 780 mm, hydraulic pump 11.2 l/min, motor 3 kW.
           Parachute valve in order to stop immediately the fall of the platform in case of oil pipes breaking.
          Top surface and its frame made of steel.
          Side guides for movement of trays: motorized chain guide and idle rollers guide.
          Chain moved by motor 1.1 kW; electronic adjustable speed through inverter.
          Structure made of normalized steel profiles with sliding shoes made of antifriction material for
          the vertical movement control of the platform.
        1. UNLOADING TABLE WITH SCISSOR LIFT TO LOWER THE TRAY
      •
        Unloading unit covered by painted steel sheets with a SCISSOR LIFT to lower the tray
          Max. capacity 2000 kg.
          No. 2 hydraulic cylinders ø 70 mm, stroke 780 mm, hydraulic pump 11.2 l/min, motor 3 kW.
           Parachute valve in order to stop immediately the fall of the platform in case of oil pipes breaking.
          Top surface and its frame made of steel.
          Side guides for movement of trays: motorized chain guide and idle rollers guide.
          Chain moved by motor 1.1 kW; electronic adjustable speed through inverter.
          Structure made of normalized steel profiles with sliding shoes made of antifriction material for
          the vertical movement control of the platform.

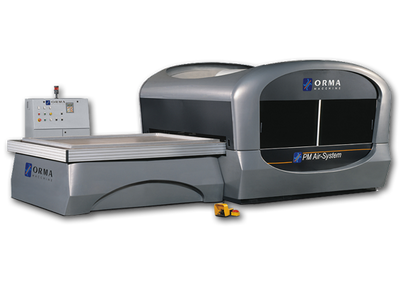

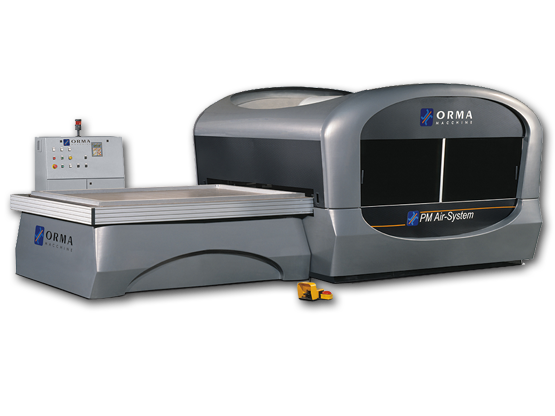

  1. MEMBRANE PRESS AFT/PS 33/14
  • Press platen dimensions              3383 x 1525    mm
  • Inner flange dimensions              3200 x 1343    mm
  • Max. useful panel dimensions                 3120 x 1260    mm
  • Working chamber height              65 (25+20+20)mm
  • Max total thrust                            500                  ton
  • Max. specific pressure                8                      kg/cm²
  • Pressing cylinders                               10 ø 140  mm
  • Opening/closing cylinders                       2 ø 40/25         mm
  • Working temperature                               150                  °C
  • Max. temperature on platen                     200                  °C
  • Installed total power of the machine       75                    kW.

Hire ORMA MEMBRANE PRESS WITH AUTOMATIC PIN SYSTEM TYPE AFT/PS 33/14

Please send us your enquiries via the following email form.

I approve of the terms and conditions.

Enquire About ORMA MEMBRANE PRESS WITH AUTOMATIC PIN SYSTEM TYPE AFT/PS 33/14

I approve of the terms and conditions.

Subscribe
